Whole-home smart energy meter designed to monitor electricity consumption in real-time. يعتمد على تقنية Z-Wave Plus لقراءة وتحليل استهلاك الطاقة (W & kWh) بدقة عالية، مما يساعد على تقليل الفواتير وتحسين كفاءة استخدام الطاقة في المباني السكنية والتجارية.

🔹 Technical Specifications

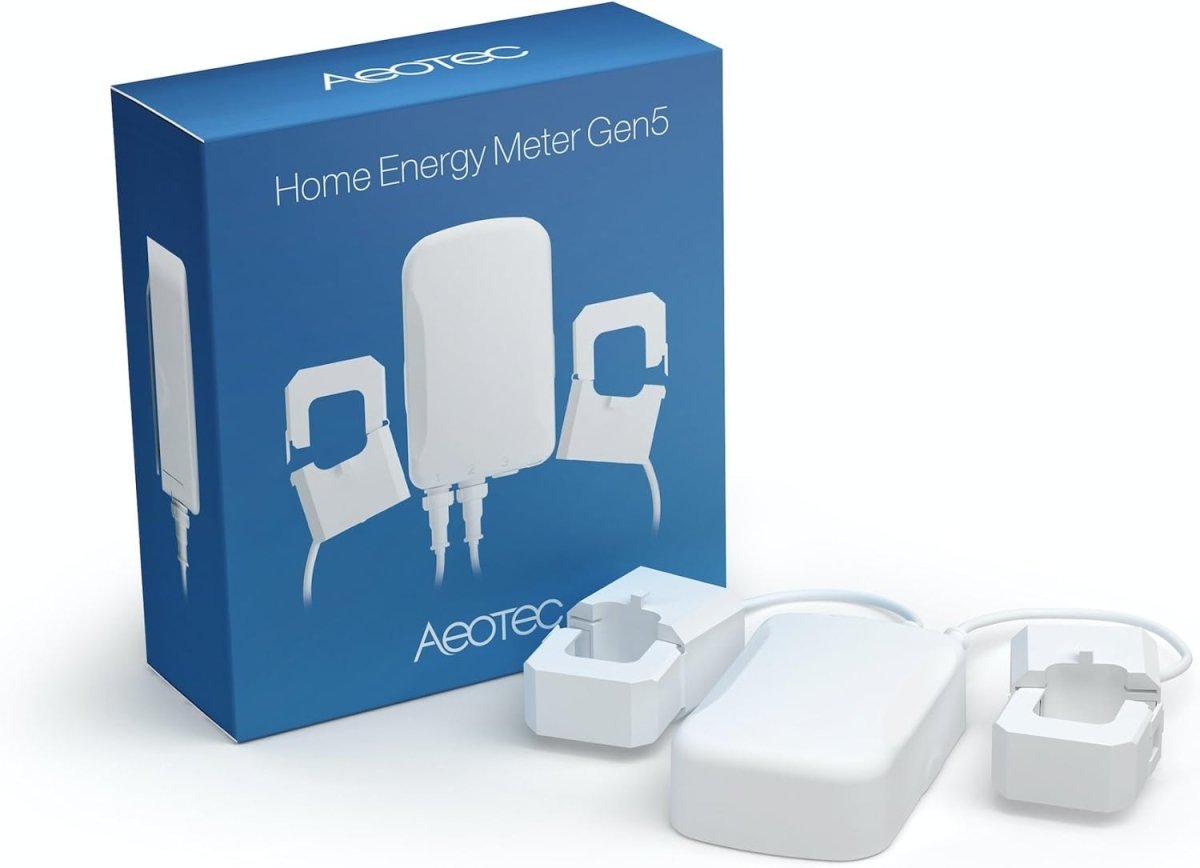

• Model: ZW095 (Home Energy Meter Gen5)
• Technology: Z-Wave Plus (Gen5 – Series 500)
• Measurement:
  • Power (W)
  • Energy (kWh)
• Accuracy: Up to 99%
• Clamp Options:
  • 1-Phase / 2-Phase / 3-Phase systems
• Max Current:
  • Up to 200A (depending on version)
• Voltage Range:
  • 90–260 VAC (typical)
• Wireless Range:
  • Up to 150 m (outdoor)
• Security: AES-128 encryption
• Power Consumption: < 1.8W standby
• Operating Temperature: 0°C to 40°C
• Humidity: 8% to 80%
• Dimensions: 99 × 66 × 34 mm
• Weight: 574 g
• Installation: Clamp-based (on main power lines – requires electrician)
• Features:
  • Real-time energy monitoring
  • Whole-house consumption tracking
  • Z-Wave network integration
  • Acts as repeater (mesh network)
