🔑 Feature Explanations

• Wireless Technology (ZigBee/WiFi) → Available in both ZigBee and WiFi versions, so you can choose based on your smart home ecosystem.

• Working Voltage & Current → Operates on AC 100–250V with ≤70mA current, suitable for standard household wiring.

• Wide Operating Temperature → Functions reliably between –20℃ and +70℃, making it versatile for different environments.

• Sensitivity Adjustment (0–9) → Default set at 7, but you can fine‑tune detection sensitivity to match your needs.

• Detection Distance → Covers 0.3–9 meters, with a default of 6 meters, ideal for ceiling installations in rooms or hallways.

• Delay Time Settings:

  • Target detection confirmation: 0–10 seconds.

  • Target disappearance delay: 0.5 seconds–25 minutes (recommended ≥15s to avoid missing motion).

• Light Sense → Measures ambient light (0–2000 lux), useful for automating lights based on brightness.

• Installation Mode → Designed for ceiling mounting, providing wide coverage.

⚙️ Technical Specifications

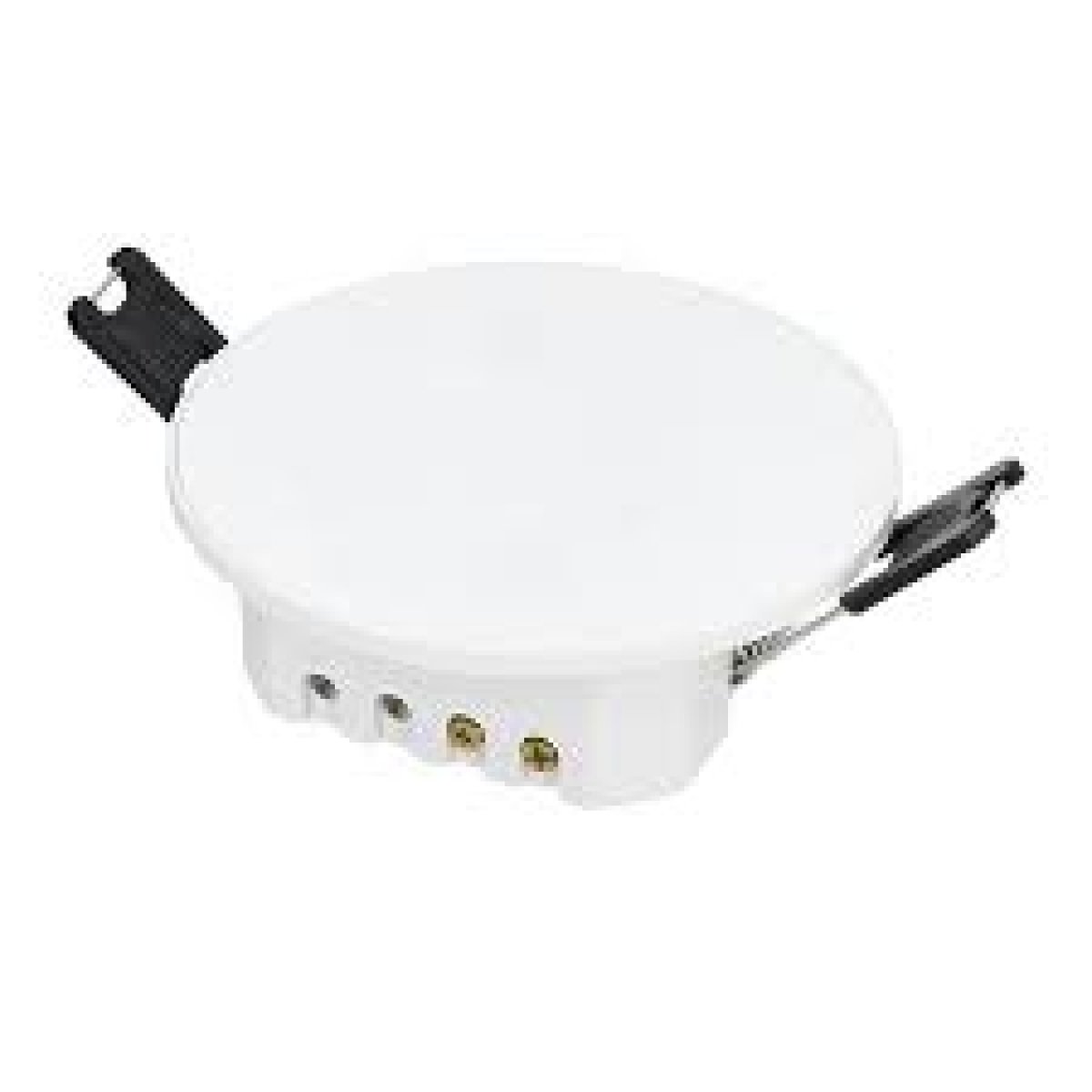

• Product Name: Human Presence Sensor

• Wireless Protocols: ZigBee / WiFi

• Voltage: AC 100–250V

• Current: ≤70mA

• Operating Temperature: –20℃ to +70℃

• Sensitivity: Adjustable 0–9 (default 7)

• Detection Distance: 0.3–9m (default 6m)

• Delay Times: Detection confirmation 0–10s; disappearance delay 0.5s–25min

• Light Sense: 0–2000 lux

• Installation: Ceiling mount

📦 Package Contents

• Human Presence Sensor ×1

• User Manual ×1
