• Product Overview

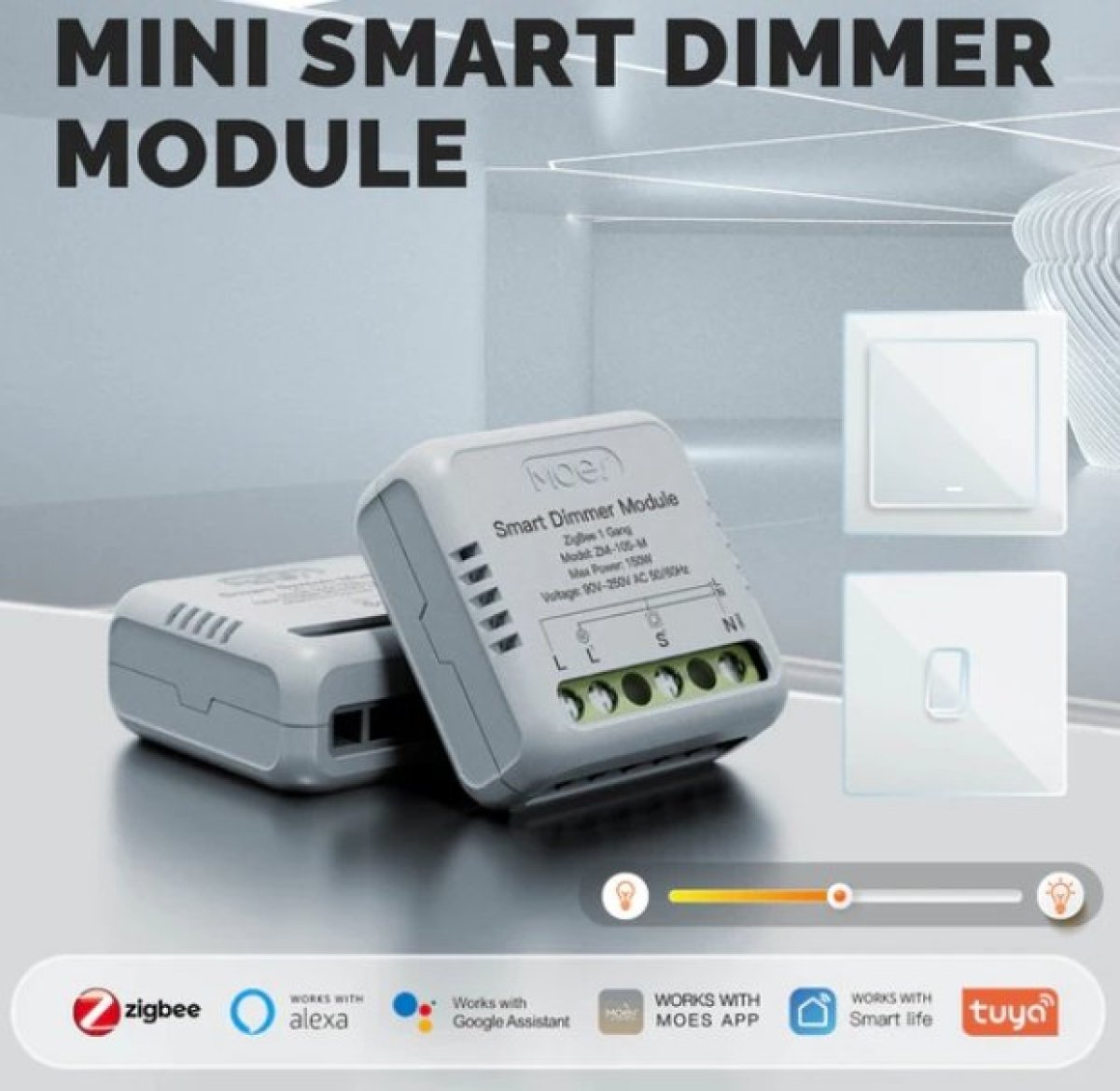

  • ZigBee smart dimmer switch module designed for lighting control.

  • Available in 1‑gang and 2‑gang versions.

  • Supports timer functions and DIY breaker setup.

• Key Features

  • Remote control via MOES/Smart Life app.

  • Adjustable brightness and scheduling.

  • Compatible with ZigBee gateways for integration into smart home ecosystems.

  • Compact design for retrofit installation

Specification

• Product type: Smart Dimmer Module
• Wireless Protocol: ZigBee 3.0
• Voltage: 90-250VAC
• Max power: 75W 110V/150W 220V
• Operation temp: -0℃-40℃
• Case temp: Tc: +80℃(Max.)
• Dims(WxDxH): 40x40x18mm
• IP rating: IP20
