Compact flush-mounted smart dimmer module designed for lighting control via Z-Wave. Installed behind standard wall switches, it enables wireless and manual dimming control with energy monitoring, ideal for seamless integration into smart home and building automation systems.

🔹 Technical Specifications

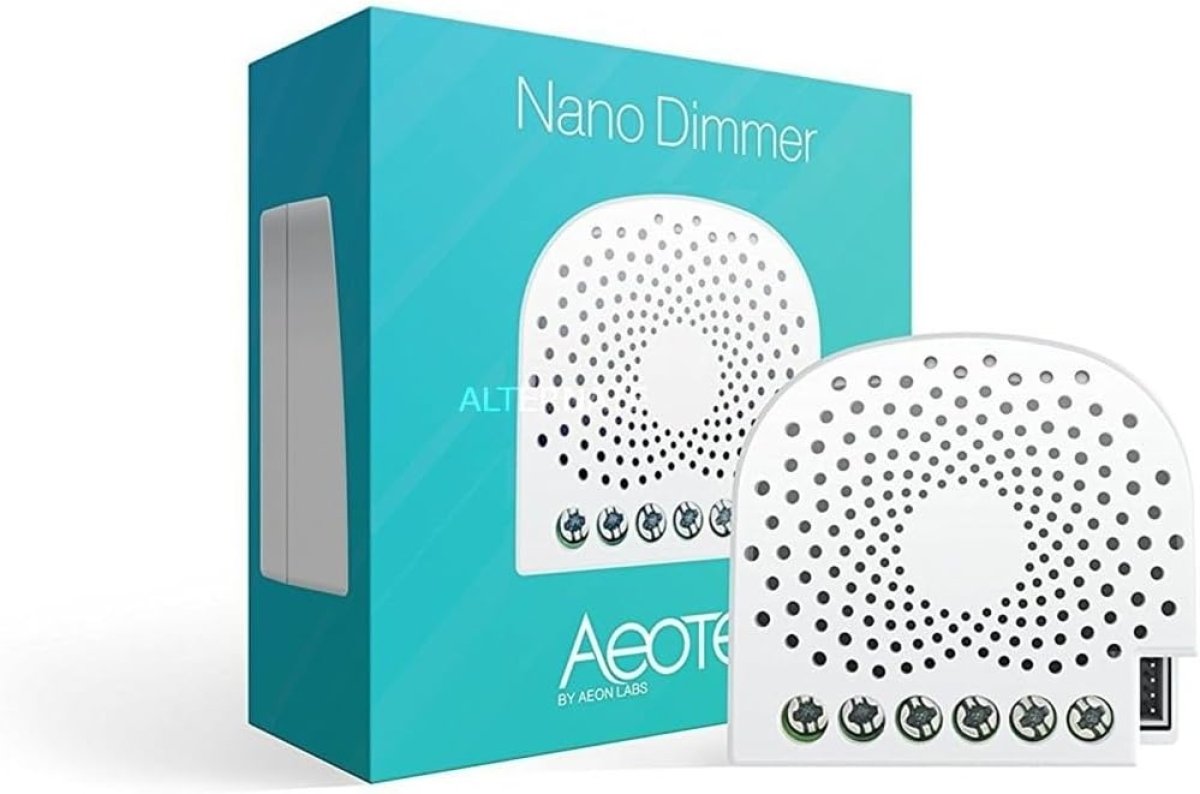

• Model: ZW111 (Nano Dimmer)
• Type: Flush Mount Smart Dimmer
• Technology: Z-Wave Plus (Gen5 – Series 500)
• Power Supply: 120–240 VAC, 50/60Hz
• Max Current: 1.2A
• Max Load:
  • 144W @ 110V
  • 276W @ 230V
• Supported Loads:
  • Dimmable LED
  • CFL / Fluorescent
  • Incandescent / Halogen
• Wiring:
  • 2-wire (no neutral)
  • 3-wire (with neutral)
• Energy Monitoring: Power (W), Energy (kWh)
• Control:
  • Z-Wave control
  • Manual switch (up to 2 switches)
• Dimensions: 42.5 × 40 × 20 mm
• Operating Temperature: 0°C to 40°C
• Humidity: 8% to 80%
• Features:
  • ON/OFF & dimming control
  • Energy monitoring
  • Works with existing switches
  • Acts as Z-Wave repeater
