Key Features

• Mini Size: Sleek, compact design saves installation space and looks modern.

• Remote Control: Operate curtains from anywhere via mobile app.

• Voice Control: Compatible with major voice assistants for hands‑free operation.

• Calibration Function: Precise calibration ensures accurate curtain positioning.

• Smart Linkage: Integrates with other smart home devices for automated routines.

Technical Specifications

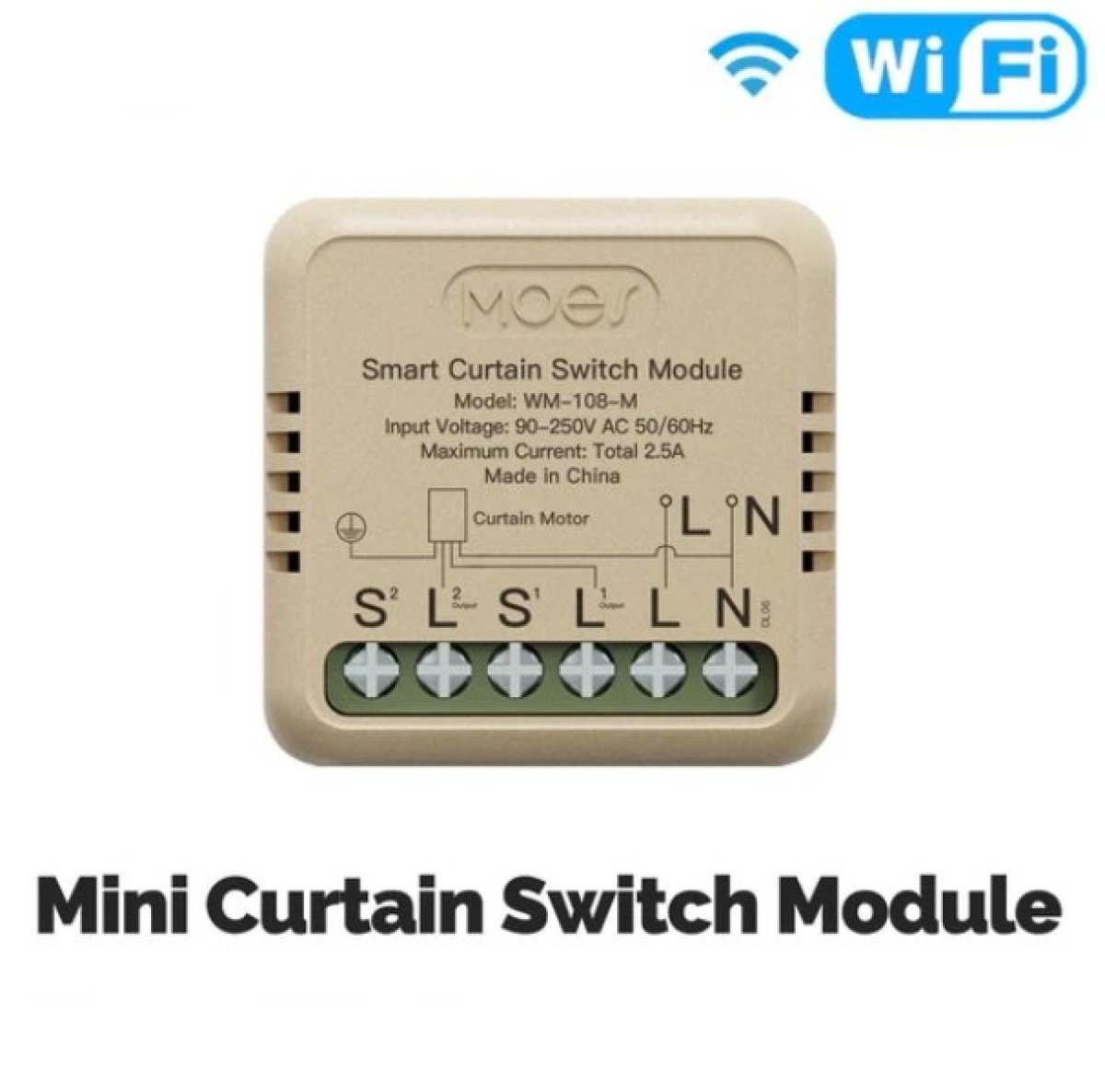

• Model: WM‑108‑M

• Product Type: Smart Curtain Switch Module

• Voltage: 90–250V AC, 50/60Hz

• Current: 2.5A per gang (total 2.5A)

• Wireless Protocols: Wi‑Fi, BLE

• Operating Temperature: –10℃ to 65℃

• Case Temperature: Max +80℃

• Operation Range: ≤70 m

• Dimensions: 40 × 40 × 18 mm

• IP Rating: IP20

• Frequency Band: 2.412–2.484 GHz

• Max Radio Transmit Power: <+16 dBm

• Compliance: RoHS (2011/65/EU, (EU) 2015/683)

Package Contents

• Smart Curtain Switch Module ×1

• User Manual ×1

• Bracket ×1
